 CD Player/Audio System Introduction And Preparation

ERROR IN DIY - Please read this before reading this DIY and be aware of the errors.

As I was testing out my CD player, I had a funny suspicion that it wasn't turning off when I turned off the car. A week later, I got in my car, turned the key and... nothing. Not a peep, not a click... nothing. My clock didn't work, nor did my ceiling light! My CD player had played all week until my car was completely dead! My error was assuming that all the systems used the same color coding for wires. This is incorrect. When dealing with electrical wiring, always double check your color codes and make sure you are hooking up the correct wires.

    click for a larger image

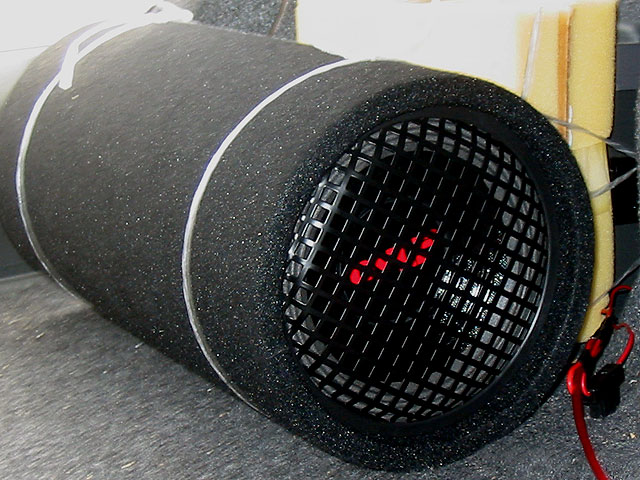

Since I can barely hear my stereo when my windows are open, I decided to buy a subwoofer so I could relieve my stock speakers of some of the bass load. Here's a picture of the Pyle Toobz self-amplified, 8" 200 watt subwoofer tube I got for $50 on ebay. Note that this wasn't any better than the stock 6x9s in the rear, so I ended up getting a pair of 12" subwoofers instead later on.

I already have a CD-Changer in my trunk, but since I never did a DIY for it, I'll include some of that information here.

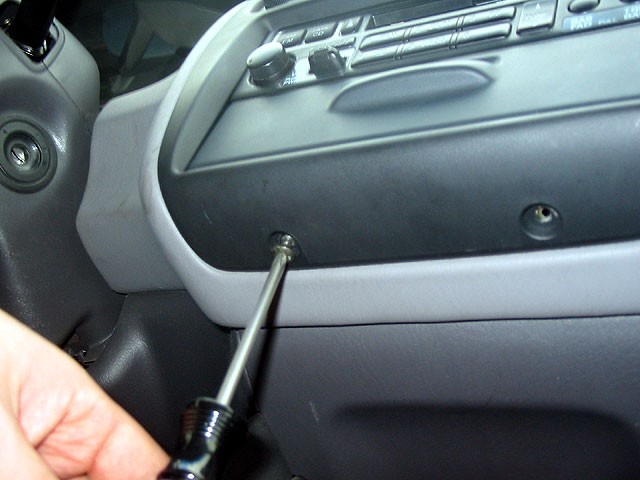

First we must take apart the car. Let's start with the center console where the stereo (head unit) is. To remove the console, undo the two screws underneath the center panel.


There is a third screw holding the console but this is hidden behind the clock, so we must take the clock out.

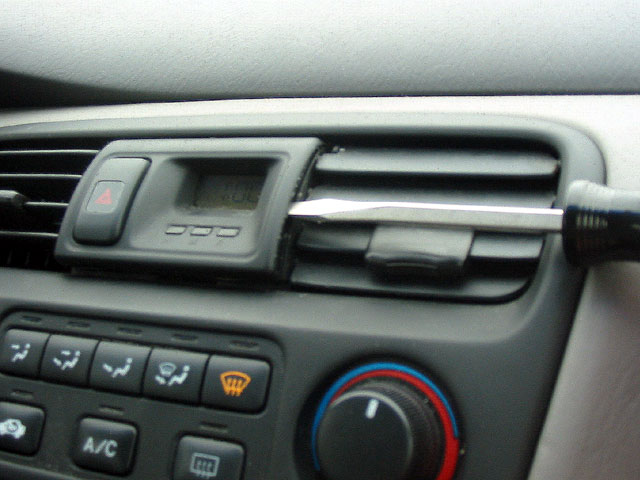

If you look carefully at the sides of the clock, you'll see a crack where the clock fits against the center console. Run your fingernails or a flat-head screwdriver into the crack and pry it out.. It should pop a little when it has freed from the clips behind it.


Pull out the clock but not too hard as there are two wire harnesses connected to the back.

One harness leads to the clock and the other to the hazard light/blinker switch. Please note that while you can drive with your console taken apart, the hazard switch must be plugged in for your turn signals to work so if you need to drive somewhere half way through the install, make sure to plug this back in.

Each wire harness has a little tab on one side. Push this in and remove the harnesses. Now you can remove the third screw that secures the console panel.


Hold the top of the console panel above the air vents and pull and it should come out. You should feel the clips inside pop out. Do the same thing at the bottom of the console where you took out the two screws. You'll feel more clips pop out.

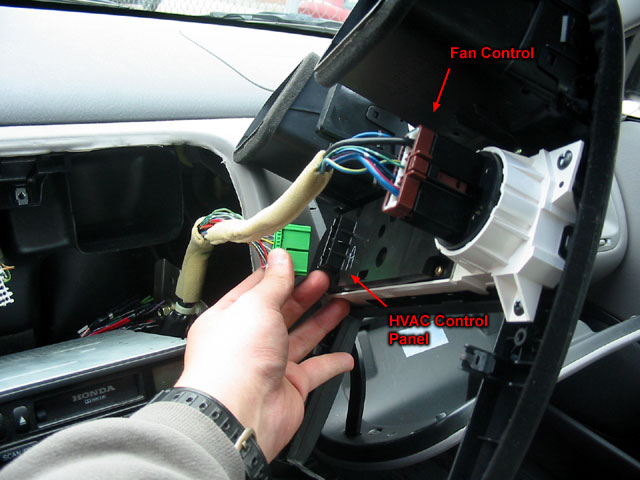

Now you can pull out the entire console. Don't pull too far as it has 2 wire harnesses, one for the fan speed control and one for the rest of the HVAC control panel. Remove the harness for the HVAC control panel. If you want, you can remove the fan speed harness as well for additional working room. You can open the glove compartment and temporarily store the console there.

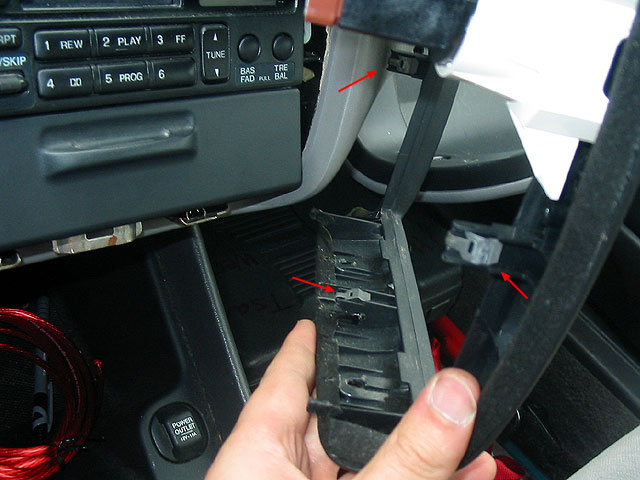

There are a total of 5 clips that help secure the console. Pictured here are three at the bottom. There are two more at the top on either side of the top screw.

Check that these clips are still on the console panel, not in the frame of the car. If you leave them on the frame, there is a good chance you'll brush them and knock them into the abyss behind your head unit and never find them again (I lost 2 screws and 2 clips down that abyss...). Also, if you try to replace the console with the clips in the support frame, they will only get knocked into the abyss. Make sure to take them off and put them back onto the console panel in the appropriate places.

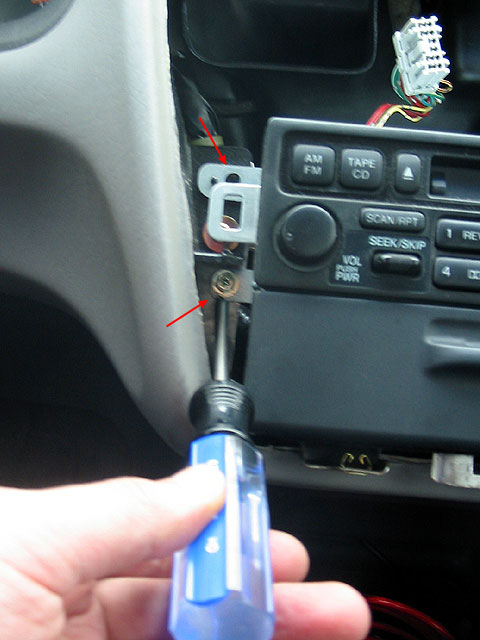

Remove the 4 screws holding the head unit to the support frame. Here you can see where two of the screws are. There are two more on the right side as well. Be careful taking these screws out as they are easy to drop into the abyss.

Once the screws are removed, gently pull out the head unit. It is attached with one harness and the antenna cable. Remove the harness and antenna cable.

If you have an OEM add-on CD player, that will take place of the storage bin under the head unit and should come out together with the head unit. The two will be connected by an additional harness.


Underneath the console is a storage bin and an additional panel. You may wish to remove this panel to give you more working space or if you are planning to run any wires there. I wired my CD changer's remote control under it.

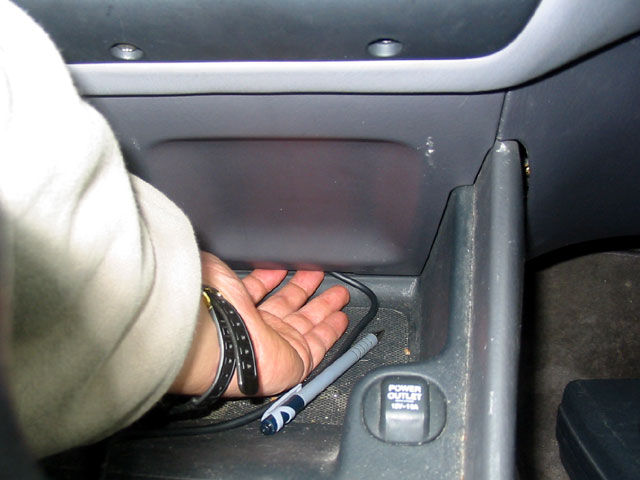

To remove it, simply clean out your bin and reach under the panel. You should be able to get a couple fingers under it and pull it loose. There are 4 clips holding this on. If you have trouble or smash your fingers or something, you can also push it out from the back.

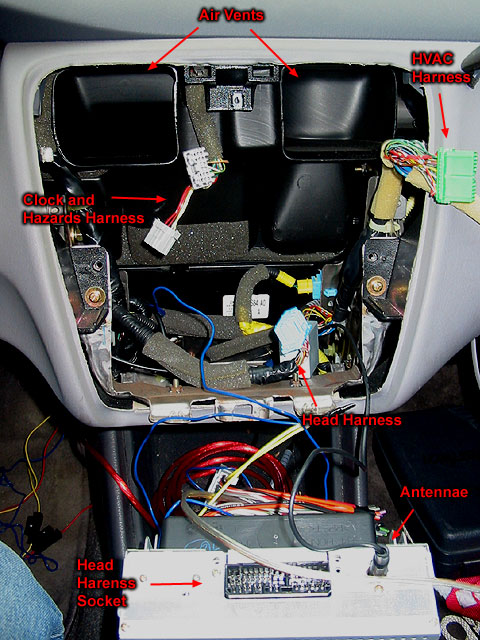

Finally, the whole center console has been removed! Here's what it will look like. You can see the two air vents at the top and the clock, hazard and HVAC harnesses. At the bottom you can see the harness for the radio (removed) and the antenna cable (not yet removed).

Now we're ready to start putting all the new stuff in!


Preparation | Installation
